Gene editing, also called genome editing, is a group of technologies to change the sequence of DNA in the genome. Several approaches to genome editing have been developed, including Zinc Finger, TALEN, and CRISPR/Cas9. Compared with the other gene editing tools, CRISPR/Cas9 system is faster, cheaper, more accurate, and more efficient, showing unprecedented advantages in gene therapy.

CRISPR/Cas9 related products
Adeno Associated Virus (AAV) CRISPR/Cas9 Servicepdf download
Adenovirus CRISPR/Cas9 Service
Lentivirus CRISPR/Cas9 Service

Cas9-gRNA design principles:

1) The PAM sequence that SpCas9 recognizes is NGG (AGG, TGG, CGG, GGG), while SaCas9 recognizes NNGRRT (NNGAAT, NNGAGT, NNGGAT, NNGGGT) or NNGRRN. For sgRNA, the length is about 21 or 22 nucleotides.

2) For sgRNA, the GC content in 40%~60% is better.

3) If the sgRNA is driven by U6 or T7 promoter, the 5’ end of sgRNA can be designed as G or GG to improve transcription efficiency, which should be considered.

4) The binding site of sgRNA should be as close to the coding region in the downstream of ATG as possible to induce frameshift mutation, the first or second exon is better.

5) SNPs should be checked in the binding site of sgRNA.

6) The distance between paired sgRNA should be taken into consideration before designing paired-gRNAs, if using Cas9 single nickase.

7) Whole genome off-target effect analysis is suggested. At least 5 bases can be allowed for the base mismatch and whether the off target is located in the gene encoding regions need to be confirmed. What’s more, base insertion or deletion in off targets should be detected.

To date, there exist so many CRISPR/Cas9 design tools, and some common tools are list in table 1.

Table 4. Common CRISPR/Cas9 design tools[64,65]

Name

Web

Affiliation

CRISPR design

http://crispr.mit.edu/

Massachusetts Institute of Technology

E-Crisp

www.e-crisp.org/E-CRISP/designcrispr

DKFZ German Cancer Research Center

CRISPR design tool

http://www.broadinstitute.org/mpg/crispr_design/

The Broad Institute of Harvard and MIT

Cas-OFFinder

http://www.rgenome.net

Harvard Medical School

CROP-IT

http://www.adlilab.org/CROP-IT/homepage.html

University of Virginia

GPP sgRNA Designer

https://portals.broadinstitute.org/gpp/public/analysis-tools/sgrna-design

The Broad Institute of Harvard and MIT

1)SpCas9 gRNA design, database and validation


Based on the above principles, SpCas9-gRNA can be designed on the following website [64]: https://portals.broadinstitute.org/gpp/public/analysis-tools/sgrna-design. Choose the CRISPR enzyme type “SpyoCas9 (NGG)”, then input transcript IDs, Gene IDs/Symbols, raw DNA sequence or upload a list of transcript IDs, Gene IDs/Symbols, a FASTA file of DNA sequences. Click on the “submit” button, and you can get and download the gRNA sequence from the following website.

Synthesize the SpCas9 gRNA sequence and its anti-sense sequence, anneal the sequences into a double chain and clone into pLv-SpCas9 vector or pAd-SpCas9 vector, which is confirmed by Sanger sequencing.

Deliver the pLv-SpCas9 vector or pAd-SpCas9 vector containing target sgRNA sequences into cells, and verify knockout efficiency.


2)SaCas9 gRNA design, database and validation



Based on the above principles, SaCas9-gRNA can be designed on the following website [64]: https://portals.broadinstitute.org/gpp/public/analysis-tools/sgrna-design. Choose the CRISPR enzyme type “SaurCas9 (NNGRR)”, then input transcript IDs, Gene IDs/Symbols, raw DNA sequence or upload a list of transcript IDs, Gene IDs/Symbols, a FASTA file of DNA sequences. Click on the “submit” button, and you can get and download the gRNA sequence from the following website.

Synthesize the SaCas9 gRNA sequence and its anti-sense sequence, anneal the sequences into a double chain and clone into pAAV-SaCas9 vector, which is confirmed by Sanger sequencing.

Deliver the pAAV-SaCas9 vector containing target sgRNA sequences into cells, and verify knockout efficiency.

3)Summary of approaches for gRNA validation

The cutting efficiency of Cas9 nuclease is mainly affected gRNA target efficiency, which can be validated by T7 endonuclease I (T7EI) assay, Sanger sequencing and Western blot.

a.T7 endonuclease I (T7EI) assay
T7 Endonuclease I recognizes and cleaves non-perfectly matched DNA, which is a simple and cheap method to determine genome targeting efficiency of CRISPR/Cas9 system. First, extract the genomic DNA of cells whose genomes were targeted by Cas9. Second, perform PCR experiments to amplify target DNA. Third, anneal the PCR products and digest them with T7 Endonuclease I. Fourth, analyze the fragments with agarose gel to determine the efficiency of gRNA targeting.

Picture loading failed.

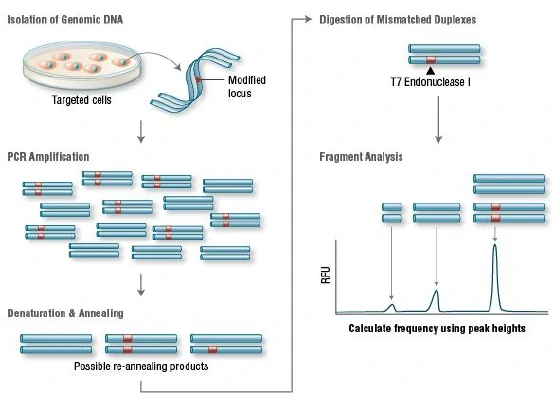

Figure 7. Principle of T7E1 assay for knockout clones

b.Sanger sequencing assay
Sanger sequencing is a direct and precise way to examine the target efficiency of gRNA. First, extract the genomic DNA of cells whose genomes were targeted by Cas9. Second, perform PCR experiments to amplify target DNA. Third, verify the sequence of target genome by Sanger sequencing and then calculate the cleavage efficiency.

c.Western blot (WB) assay
Western blot is also simple, easy but no so precise assay for the determination of gRNA targeting efficiency. First, extract the whole cell protein of cells whose genomes were targeted by Cas9. Second, perform Western blot experiments to detect the expression levels of target protein. Third, confirm the efficiency of gRNA by analyzing the WB results.

4)How to detect the off-target?

Although CRISPR/Cas9 system is a versatile gene editing technology that is widely applied in the study of basic science and translational research, high frequency of off-target activity is really a restriction factor for its therapeutic and clinical applications. So far, several methods have been used to determine the off-targets with different advantages and disadvantages [65].

Table 5. Common CRISPR/Cas9 design tools [65]

Method

Advantage

Disadvantage

References

T7E1 assay

Simple

Poor sensitivity, not cost-effective

[66,67]

Deep sequencing

Precise

Biased, misses potential off-target sites elsewhere in the genome

[25,68]

In silico prediction

Predicts some off-target mutation sites

Fails to predict bona-fide off-target sites

[69,70]

ChIP-seq

Unbiased detection of Cas9 binding sites genome-wide

Most off-target DNA-binding sites recognized by dCas9 are not cleaved at all by Cas9 in cells

[71-74]

GUIDE-seq

Unbiased, sensitive (0.1%), qualitative translocations, identifies breakpoint hotspots

False negatives present, limited by chromatin accessibility

[75]

HTGTS

Identifies translocations

False negatives present, limited by chromatin accessibility

[73]

IDLV

Programmable, sensitive (1%)

Many bona-fide off-target sites cannot be captured

[76]

Digenome-seq

Sensitive (0.1% or lower), unbiased and cost-effective

Not widely used

[77]

FISH

Quick

Less precise

[78]

ChIP-seq, Chromatin immunoprecipitation followed by massively parallel DNA sequencing
GUIDE-seq, Genome-wide unbiased identification of DSBs enabled by sequencing
HTGTS, high-throughput, genome-wide, translocation sequencing
IDLV, integrase-defective lentiviral vectors
FISH, fluorescence in situ hybridization

5)How to minimize off-target?

a. Alter the sgRNA sequence. Truncation of the 3′ end of sgRNA, shortening the region complementary to the target site at the 5′ end of the sgRNA by as many as 3 nt (tru-gRNA) or addition of two guanine nucleotides to the 5′ end of the sgRNA improves target specificity [79].

b. Try to optimize the design of Cas9 and sgRNA design with design tools or directed evolution [64,80].

c. Purified Cas9 ribonucleoprotein works more immediately than plasmids containing Cas9 gene sequence and can be degraded rapidly in cells, which may help minimize the off-target frequency [81,82].

d. Strategies that restrict the transcription and translation of Cas9 may help minimize off-target effects [83].

e. Replace the wild-type Cas9 nuclease with D10 mutant Cas9 nickase and paired with two sgRNAs that each cleaves only one strand [28].

f. Improve DNA cleavage specificity using fusions of dCas9 with FokI nuclease domain (fCas9) (Figure 6) [84,85].

Picture loading failed.

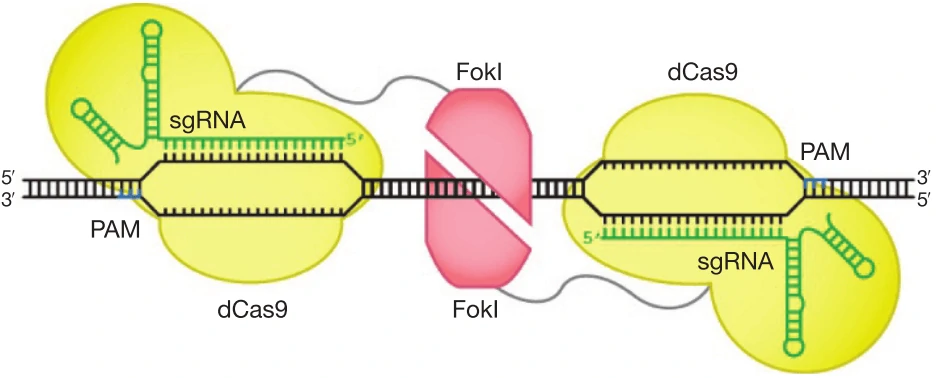

Figure 8. Architectures of Cas9 and FokI-dCas9 fusion variants. Two monomers of FokI nuclease (red) fused to dCas9-sgRNAs as shown in figure cleavage nucleic acids within the target locus. The catalytically active FokI nuclease dimer can only be assembled by adjacently bound by two FokI-dCas9 monomers to trigger dsDNA cleavage [84].
