GeneMedi SOLIDEX™ Immune Cell Solution

GeneMedi's SOLIDEX™-ISOEx Nanobeads: uniform size and regular shape

The SOLIDEX™-ISOEx Nanobeads utilize superparamagnetic iron oxide particles with high uniformity and a particle size of 50 nm, offering rapid response to magnetic fields and no significant impact on cell viability or activity. Experimental results demonstrate that, compared to those from Company M, the SOLIDEX™-ISOEx Nanobeads have more consistent size and even more regular shape.

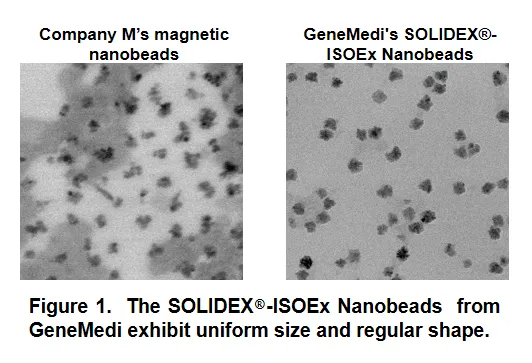

Figure 1. The SOLIDEX™-ISOEx Nanobeads from GeneMedi exhibit uniform size and regular shape.

Efficient Isolation of Jurkat Cells Using SOLIDEX™-ISOEx Indirect Human TCR alpha-beta (abT)+ Cell Isolation Kit (Column-Based)

Catalog No. GM-Tg-hg-MP2610-iso-kit
To evaluate the performance of GeneMedi’s SOLIDEX™-ISOEx Indirect Human TCR alpha-beta (abT)+ Cell Isolation Kit (Column-Based), Jurkat cells were mixed with 293T-GFP cells at a 1:2 ratio, followed by magnetic separation using both GeneMedi’s kit and a competitor’s (Company M’s TCRα/β T Cell Isolation Kit). The purity of isolated Jurkat cells was assessed via flow cytometry analysis. SOLIDEX™-ISOEx Indirect Human TCR alpha-beta (abT)+ Cell Isolation Kit (Column-Based) delivers superior cell isolation performance.

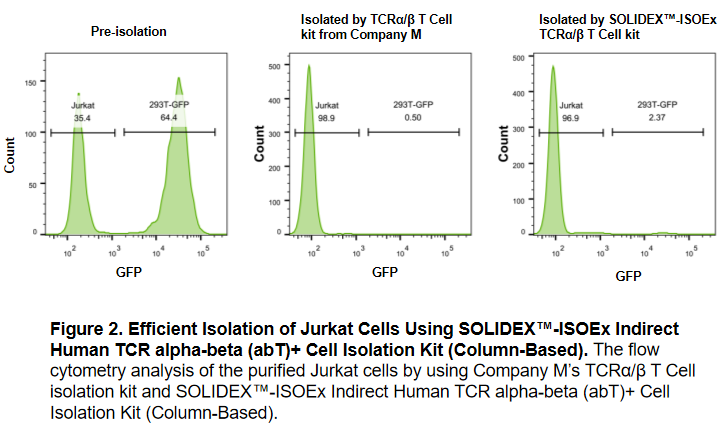

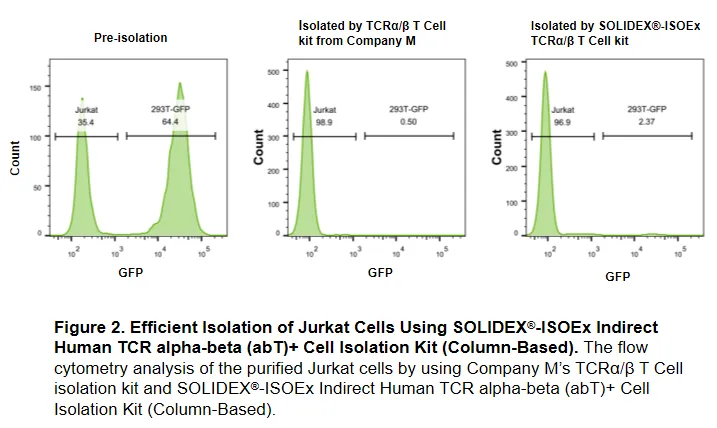

Figure 2. Efficient Isolation of Jurkat Cells Using SOLIDEX™-ISOEx Indirect Human TCR alpha-beta (abT)+ Cell Isolation Kit (Column-Based). The flow cytometry analysis of the purified Jurkat cells by using Company M’s TCRα/β T Cell isolation kit and SOLIDEX™-ISOEx Indirect Human TCR alpha-beta (abT)+ Cell Isolation Kit (Column-Based).

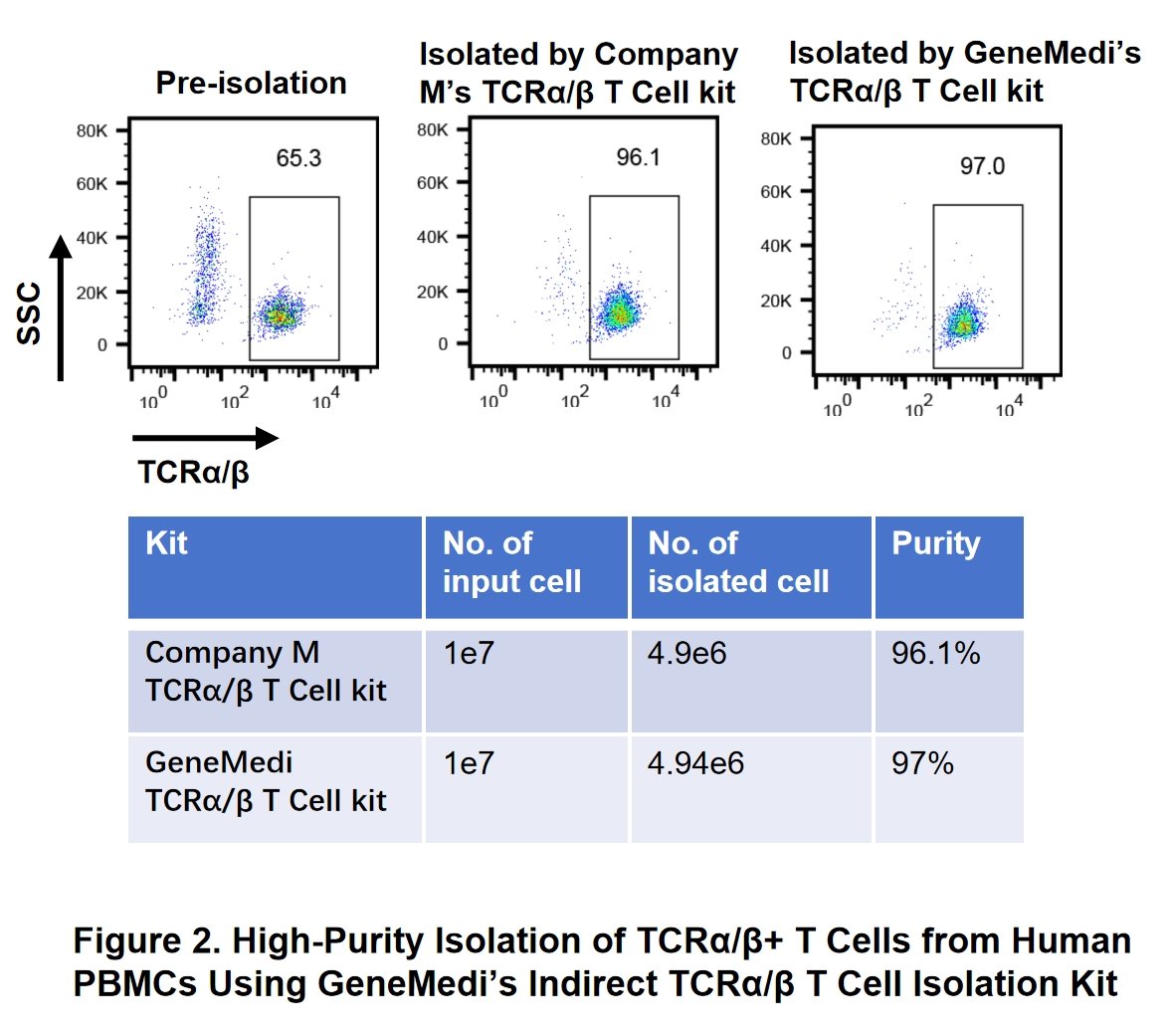

High-Purity Isolation of TCRα/β+ T Cells from Human PBMCs Using SOLIDEX™-ISOEx Indirect Human TCR alpha-beta (abT)+ Cell Isolation Kit (Column-Based).

Catalog No. GM-Tg-hg-MP2610-iso-kit
Human peripheral blood mononuclear cells (PBMCs) were freshly recovered and subjected to TCRα/β+ T cell isolation using GeneMedi’s Indirect TCRα/β T Cell Isolation Kit and Company M’s TCRα/β T Cell kit. The isolated cell population was analyzed by flow cytometry to evaluate purity and efficiency. SOLIDEX™-ISOEx Indirect Human TCR alpha-beta (abT)+ Cell Isolation Kit (Column-Based) provides superior performance in isolating TCRα/β+ T cells from human PBMCs, delivering high purity and yield for downstream applications.

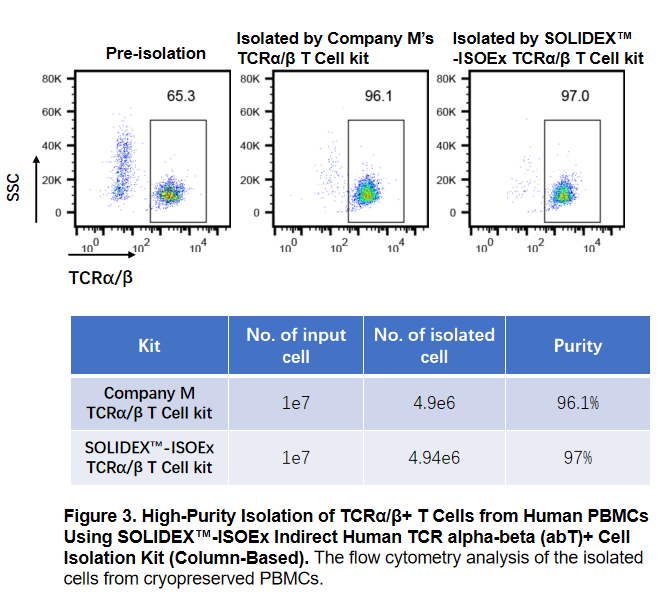

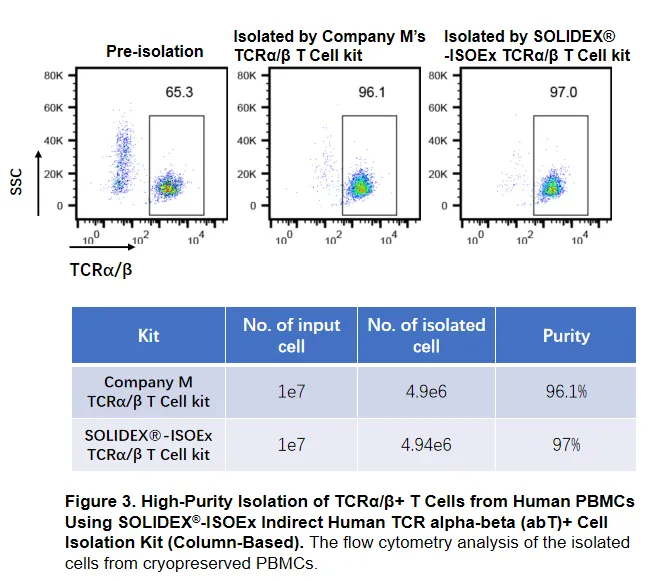

Figure 3. High-Purity Isolation of TCRα/β+ T Cells from Human PBMCs Using SOLIDEX™-ISOEx Indirect Human TCR alpha-beta (abT)+ Cell Isolation Kit (Column-Based). The flow cytometry analysis of the isolated cells from cryopreserved PBMCs.

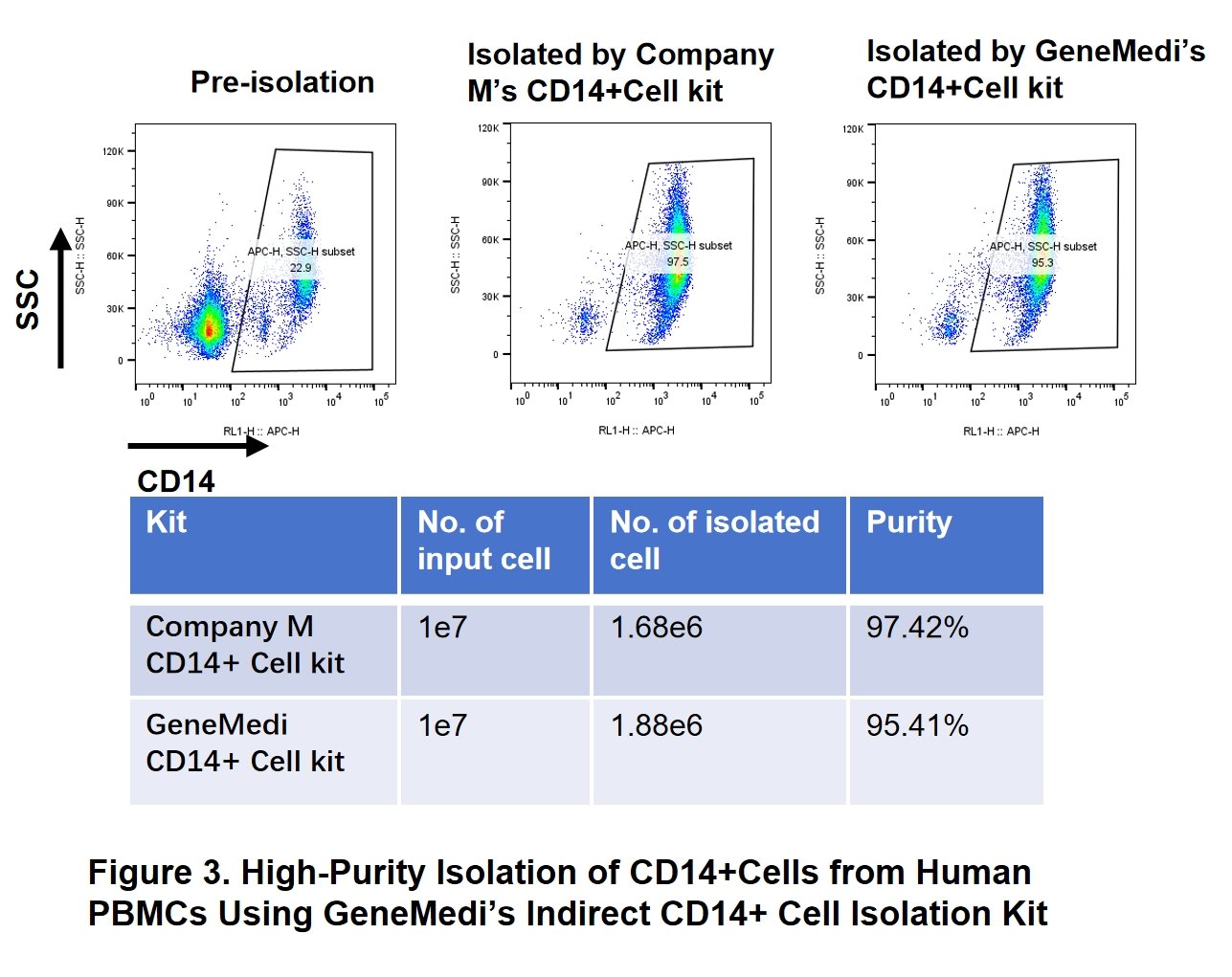

High-Purity Isolation of CD14+ Cells from Human PBMCs Using SOLIDEX™-ISOEx Indirect Human CD14+ Cell Depletion Kit (Column-Based).

Catalog No. GM-Tg-hg-T23212-dep-kit
Human peripheral blood mononuclear cells (PBMCs) were freshly recovered and subjected to CD14+ cell isolation using GeneMedi’s Indirect Human CD14+ Cell Depletion Kit (Column-Based) and Company M’s CD14+ Cell kit. The isolated cell population was analyzed by flow cytometry to evaluate purity and efficiency. SOLIDEX™-ISOEx Indirect Human CD14+ Cell Depletion Kit (Column-Based) provides superior performance in isolating CD14+ T cells from human PBMCs, delivering high purity and yield for downstream applications.

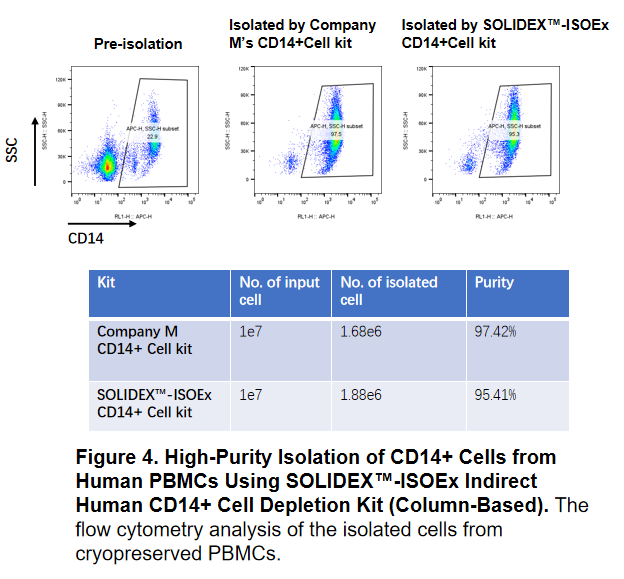

Figure 4. High-Purity Isolation of CD14+ Cells from Human PBMCs Using SOLIDEX™-ISOEx Indirect Human CD14+ Cell Depletion Kit (Column-Based). The flow cytometry analysis of the isolated cells from cryopreserved PBMCs.

Efficient Isolation of NK Cells Using SOLIDEX™-ISOEx Untouched Human NK Cell Isolation Kit (Column-Based)

Catalog No.GM-Tg-hg-NK-Cell-iso-kit
To determine the purity of isolated NK cells, CD56+ NK cells were magnetically sorted from human peripheral blood mononuclear cells (PBMCs). Cells before and after separation were stained with CD3-APC and CD56-PE antibodies and subsequently analyzed by flow cytometry. Results demonstrated a remarkable increase in CD56+ NK cell purity from 8.19% pre-isolated to 94.3% post-isolated, confirming highly effective NK cell enrichment.

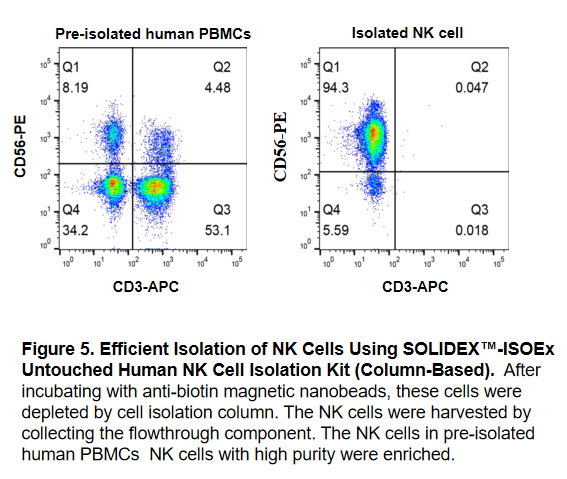

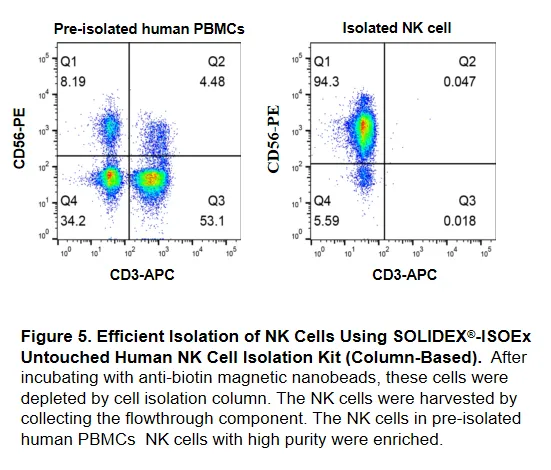

Figure 5. Efficient Isolation of NK Cells Using SOLIDEX™-ISOEx Untouched Human NK Cell Isolation Kit (Column-Based). The non-NK cells were labeled with biotinylated antibodies. After incubating with anti-biotin magnetic nanobeads, these cells were depleted by cell isolation column. The NK cells were harvested by collecting the flowthrough component. The NK cells in pre-isolated human PBMCs. NK cells with high purity were enriched.

High-Purity Isolation of NK Cells from Human PBMCs Using SOLIDEX™-ISOEx Untouched Human NK Cell Isolation Kit (Column-Based)

Catalog No.GM-Tg-hg-NK-Cell-iso-kit
Human peripheral blood mononuclear cells (PBMCs) were freshly recovered and subjected to NK cell isolation using SOLIDEX™-ISOEx Untouched Human NK Cell Isolation Kit (Column-Based) and Company M’s NK Cell kit. The isolated cell population was analyzed by flow cytometry to evaluate purity and recovery rate. SOLIDEX™-ISOEx Untouched Human NK Cell Isolation Kit (Column-Based) provides superior performance in isolating NK cells from human PBMCs, delivering high purity and recovery rate for downstream applications.

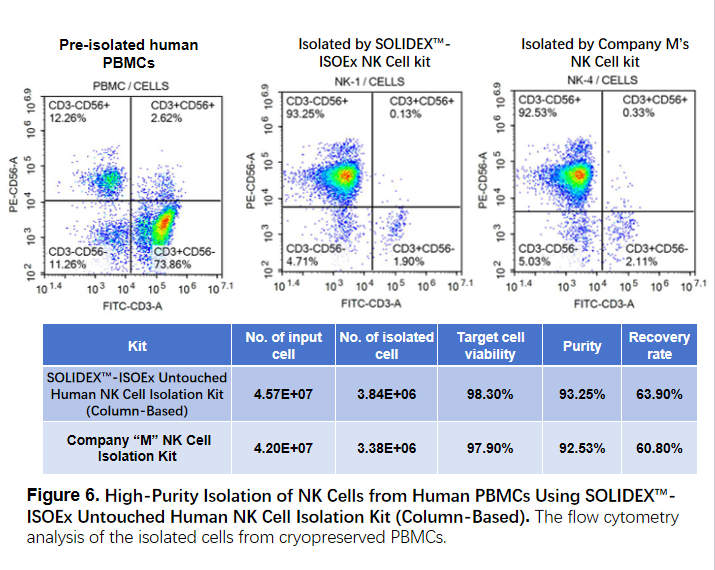

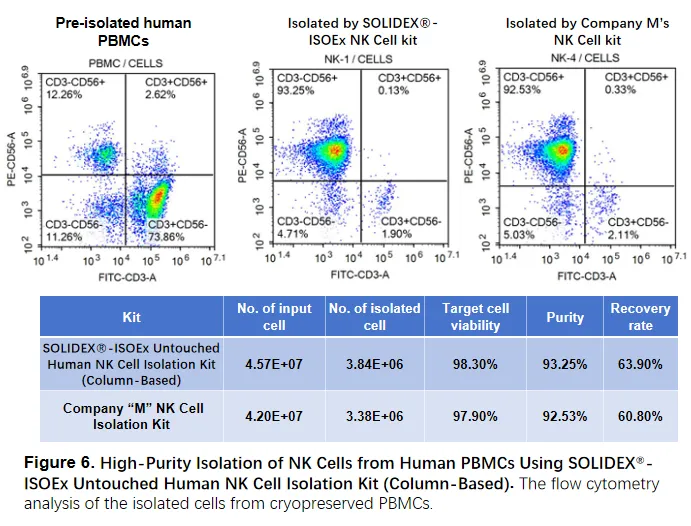

Figure 6. High-Purity Isolation of NK Cells from Human PBMCs Using SOLIDEX™-ISOEx Untouched Human NK Cell Isolation Kit (Column-Based). The flow cytometry analysis of the isolated cells from cryopreserved PBMCs.

Efficient Isolation of Pan-T Cells Using SOLIDEX™-ISOEx Human CD3 Isolation Nanobeads (Column-Based)

Catalog No.GM-Tg-hg-T87075-iso-nanoIMB
To assess the purity of isolated T cells, CD3+ T cells were magnetically sorted from human peripheral blood mononuclear cells (PBMCs). Cells before and after separation were stained with APC-conjugated CD3 antibody and propidium iodide (PI), followed by flow cytometric analysis. The results demonstrated a significant increase in CD3+ T cell purity from 52.6% pre-isolated to 95.0% post-isolated, confirming successful T cell isolation.

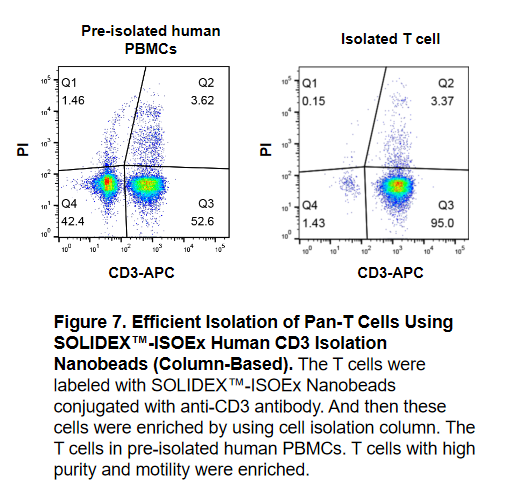

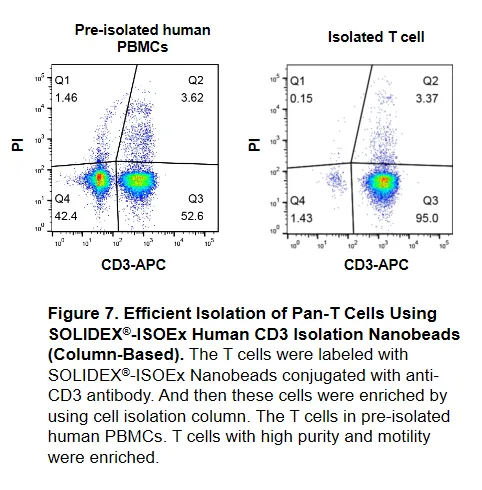

Figure 7. Efficient Isolation of Pan-T Cells Using SOLIDEX™-ISOEx Human CD3 Isolation Nanobeads (Column-Based). The T cells were labeled with SOLIDEX™-ISOEx Nanobeads conjugated with anti-CD3 antibody. And then these cells were enriched by using cell isolation column. The T cells in pre-isolated human PBMCs. T cells with high purity and motility were enriched.

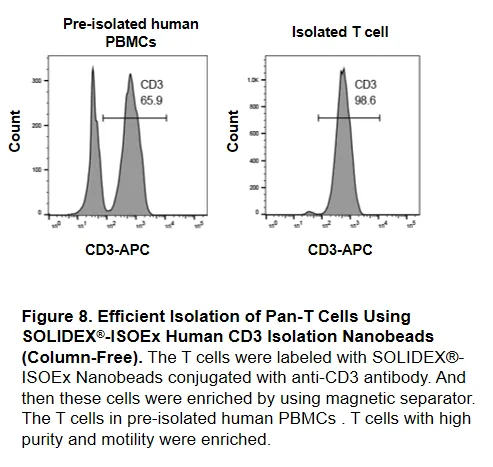

Efficient Isolation of Pan-T Cells Using SOLIDEX™-ISOEx Human CD3 Isolation Nanobeads (Column-Free)

Catalog No.GM-Tg-hg-T87075-iso-nanoIMB-CF
To evaluate the purity of isolated T cells, CD3+ T cells were magnetically sorted from human peripheral blood mononuclear cells (PBMCs). Cells before and after separation were stained with APC-conjugated CD3 antibody and analyzed by flow cytometry. The CD3+ T cell purity demonstrated a substantial increase from 65.9% pre-separation to 98.6% post-separation, confirming highly effective T cell isolation.

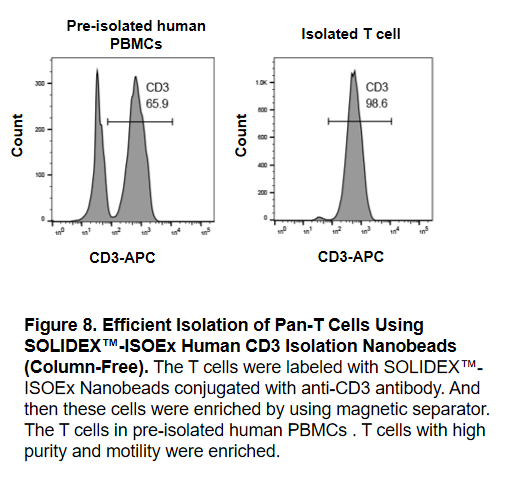

Figure 8. Efficient Isolation of Pan-T Cells Using SOLIDEX™-ISOEx Human CD3 Isolation Nanobeads (Column-Free). The T cells were labeled with SOLIDEX™-ISOEx Nanobeads conjugated with anti-CD3 antibody. And then these cells were enriched by using magnetic separator. The T cells in pre-isolated human PBMCs. T cells with high purity and motility were enriched.

Efficient Isolation of CD4+ T Cells Using SOLIDEX™-ISOEx Human CD4 Isolation Nanobeads (Column-Based)

Catalog No. GM-Tg-hg-T10191-iso-nanoIMB
To assess the purity of isolated CD4+ T cells, magnetic separation was performed on human peripheral blood mononuclear cells (PBMCs). Both pre- and post-isolation cells were labeled with CD3-APC and CD4-PE antibodies and subjected to flow cytometric analysis. The purity of CD4+ T cells was significantly enhanced, rising from 28.1% before isolation to 97.0% after isolation, indicating highly efficient enrichment of CD4+ T cells.

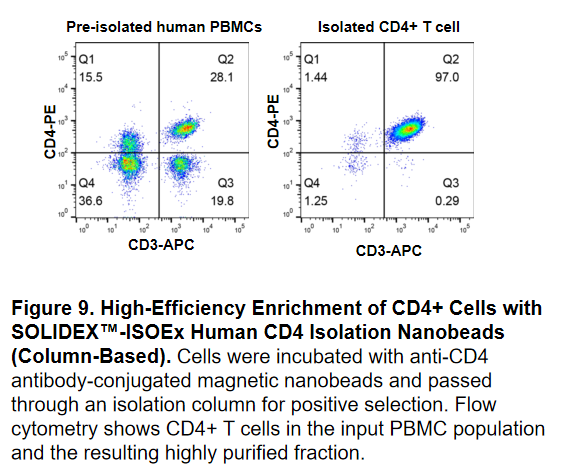

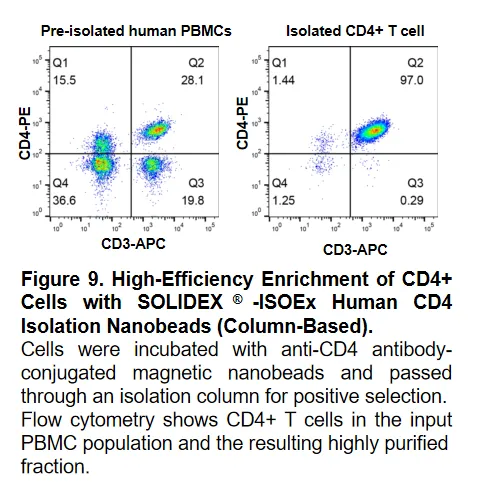

Figure 9. High-Efficiency Enrichment of CD4+ Cells with SOLIDEX™-ISOEx Human CD4 Isolation Nanobeads (Column-Based). Cells were incubated with anti-CD4 antibody-conjugated magnetic nanobeads and passed through an isolation column for positive selection. Flow cytometry shows CD4+ T cells in the input PBMC population and the resulting highly purified fraction.

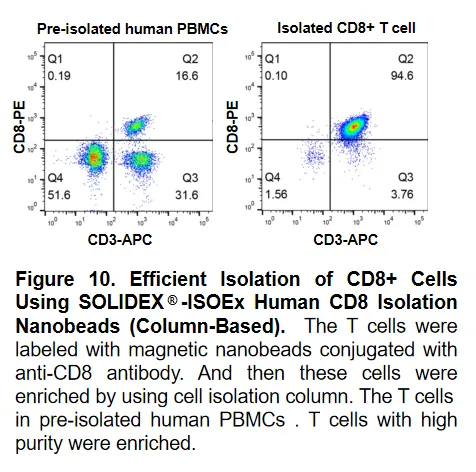

Efficient Isolation of CD8+ T Cells Using SOLIDEX™-ISOEx Human CD8 Isolation Nanobeads (Column-Based)

Catalog No. GM-Tg-hg-TA040-iso-nanoIMB
To determine the purity of isolated CD8+ T cell, CD8+ T cells were magnetically sorted from human peripheral blood mononuclear cells (PBMCs). Cells before and after separation were stained with CD3-APC and CD8-PE antibodies and subsequently analyzed by flow cytometry. Results demonstrated a remarkable increase in CD8+ T cell purity from 16.6% pre-isolated to 94.6% post-isolated, confirming highly effective CD8+ T cell enrichment.

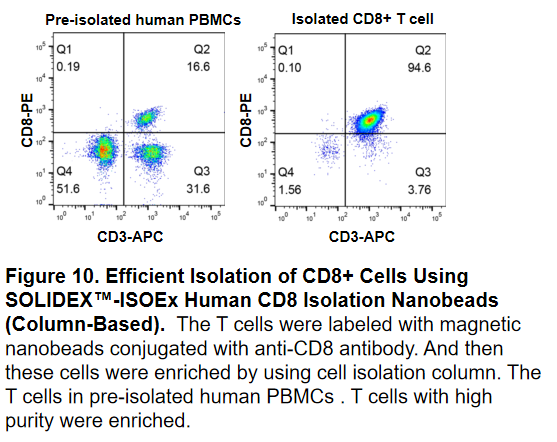

Figure 10. Efficient Isolation of CD8+ Cells Using SOLIDEX™-ISOEx Human CD8 Isolation Nanobeads (Column-Based). The T cells were labeled with magnetic nanobeads conjugated with anti-CD8 antibody. And then these cells were enriched by using cell isolation column. The T cells in pre-isolated human PBMCs . T cells with high purity were enriched.
