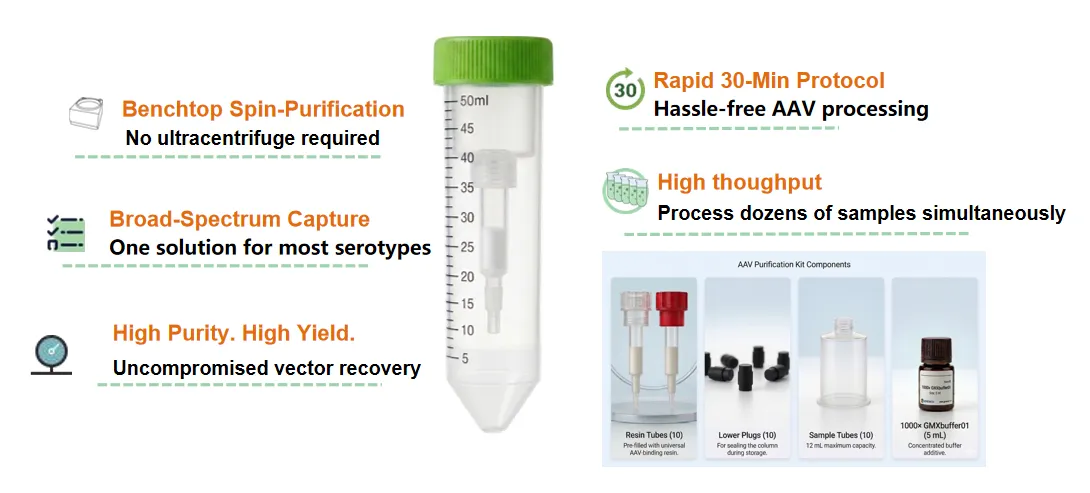

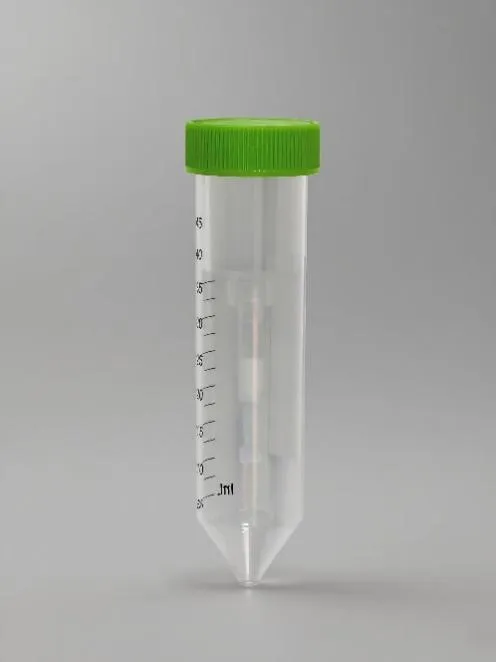

PurProX® AAVEasy rapid-to-purify Spin Column — The 30-Minute Discovery Tool (50mL Embedded Format)
AAVEasy rapid-to-purify Spin Column redefine laboratory-scale purification through a unique Embedded Column Design compatible with standard 50mL centrifuge tubes. Mirroring the industrial line, they are offered in distinct U1 and U2 configurations.
- Precise Serotype Matching:
- AAVEasy-U1: Targets AAV2, AAV5, AAV6, AAV8, AAV-DJ, and AAV-7m8.
- AAVEasy-U2: Specially optimized for high-affinity binding of AAV9 and variants like AAV-PHP series.
- Identical Chemistry in a 50mL System: Packed with the same Large-Pore Microspheres as the industrial AAVPure resin. This format allows for convenient processing in standard 50mL tubes while generating data that truly simulates large-scale bioreactor performance.
- Ultracentrifuge Replacement: Requires only a standard benchtop centrifuge (50mL rotor) to complete purification in <30 minutes, eliminating the need for expensive ultracentrifugation or complex chromatography equipment.
- Performance: Delivers up to 80% recovery and >85% purity, producing high-quality vectors ready for cell transduction or in vivo modeling.
PurProX® AAV Purification Solution
COA
Order Information
| Product Type | Catalog No. | Product Name | Size | Price (USD) |
|---|---|---|---|---|
| Spin Column | GMV-PurProX-AAVEasy-U-1-10T | PurProX® AAVEasy rapid-to-purify Spin Column-1 | 10 T | |
| Spin Column | GMV-PurProX-AAVEasy-U-2-10T | PurProX® AAVEasy rapid-to-purify Spin Column-2 | 10 T |

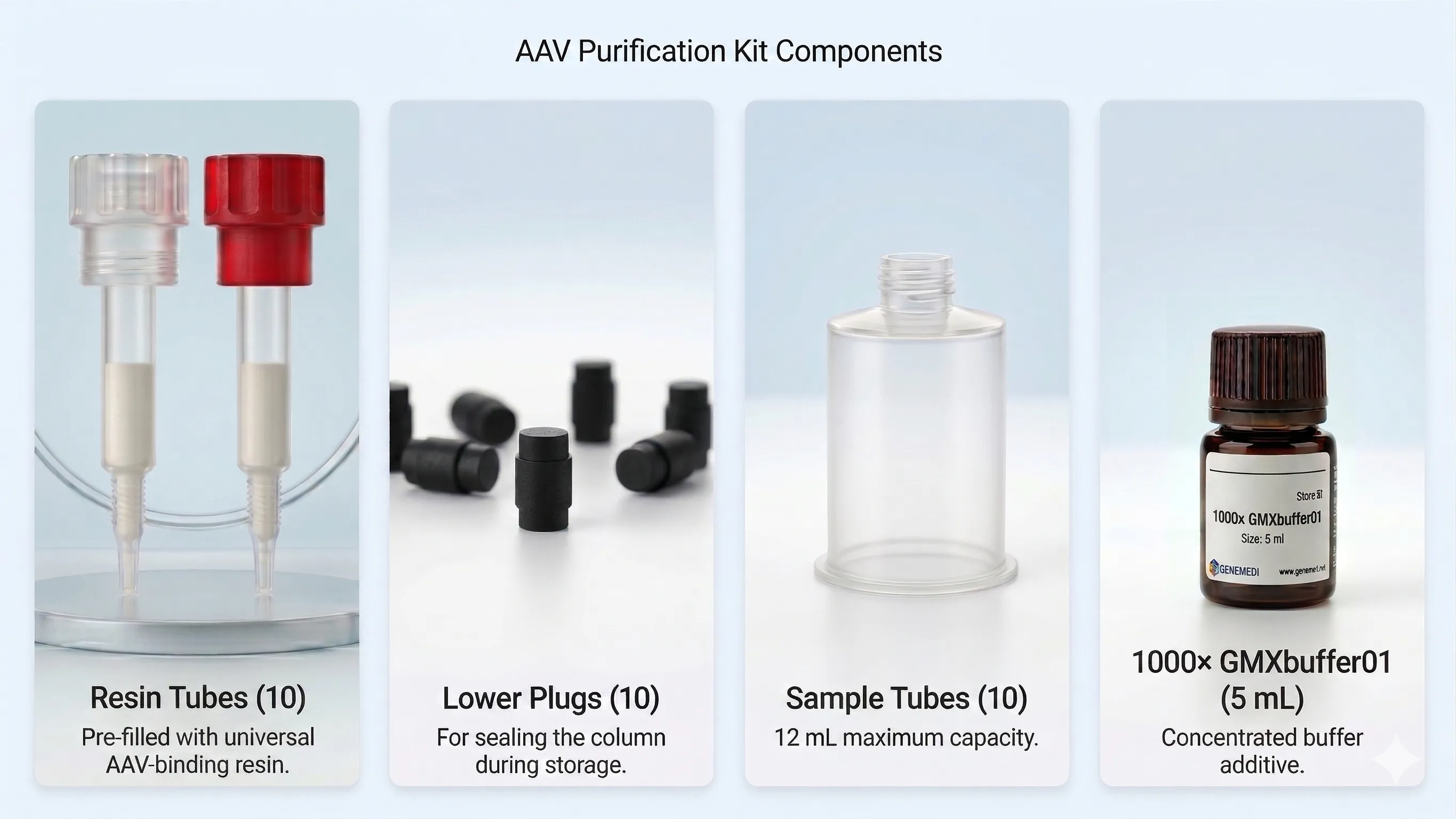

AAV Easy Purification Kit Components
| Component Name | Quantity | Description |
|---|---|---|
| Resin Tubes | 10 | Pre-filled with universal AAV-binding resin for efficient virus capture. |
| Lower Plugs | 10 | Used to seal the bottom of the purification column during storage or handling. |
| Sample Collection Tubes (12 mL) | 10 | Sterile tubes for collecting purified AAV samples; maximum capacity 12 mL. |
| 1000× GMXbuffer01 | 5 mL | Concentrated buffer additive; dilute 1:1000 before use in the purification workflow. |
Application of PurProX® AAVEasy rapid-to-purify Spin Column
- Industrial Evaluation & Scalability Studies: Packed with PurProX® AAVPure Affinity Resin, these spin columns are ideal for industrial clients to conduct small-scale feasibility and process evaluations before scaling up to bulk resin volumes.
- High-Throughput Mutant Screening & Small-Volume Purification: Enables parallel processing of numerous AAV variants, perfectly meeting the demands of small-scale purification in library screening.
- Novel Capsid Development & Directed Evolution: Tailored for the purification and evaluation of engineered AAV capsids, accelerating the discovery of next-generation vectors.
- Rapid Screening of AAV Constructs: Accelerates the optimization and validation of transgenes, promoters, and regulatory elements.
- Small-Dose Application Production (e.g., Ophthalmology): Ideal for manufacturing high-concentration, small-volume AAV vectors dedicated to localized, low-dose therapies such as ophthalmic or neurological gene interventions without wasting materials.
- In Vivo Gene Therapy Studies: Provides high-purity, low-endotoxin AAV vectors suitable for direct animal injections and preclinical efficacy evaluation.
- Universal AAV Purification & Serotype Coverage: Suitable for the efficient purification, concentration, and desalting of major AAV serotypes to ensure consistent downstream results.
- Preclinical AAV Vector Production: Facilitates small-to-medium scale preparation of AAV vectors for proof-of-concept and early-stage preclinical studies.
- Academic & Biotech R&D Workflows: A versatile tool that seamlessly integrates into routine laboratory workflows for rapid AAV sample processing.
Why Choose AAVEasy Over Ultracentrifugation?
Traditional AAV purification relies on time-consuming ultracentrifugation (4–16 hours) with low recovery (30–50%) and inconsistent purity. In contrast, AAVEasy delivers >85% purity and up to 80% recovery in under 30 minutes, using only a standard benchtop centrifuge.
| Feature | AAVEasy | Ultracentrifugation | AKTA Chromatography |
|---|---|---|---|
| Time | <30 min | 4–16 hrs | 2–4 hrs |
| Equipment | Benchtop centrifuge | Ultracentrifuge | FPLC system |
| Recovery | Up to 80% | 30–50% | 60–80% |
| Purity | >85% | Low | >90% |
| Scalability | Yes (to AAVPure resin) | No | Yes |
Validation Data

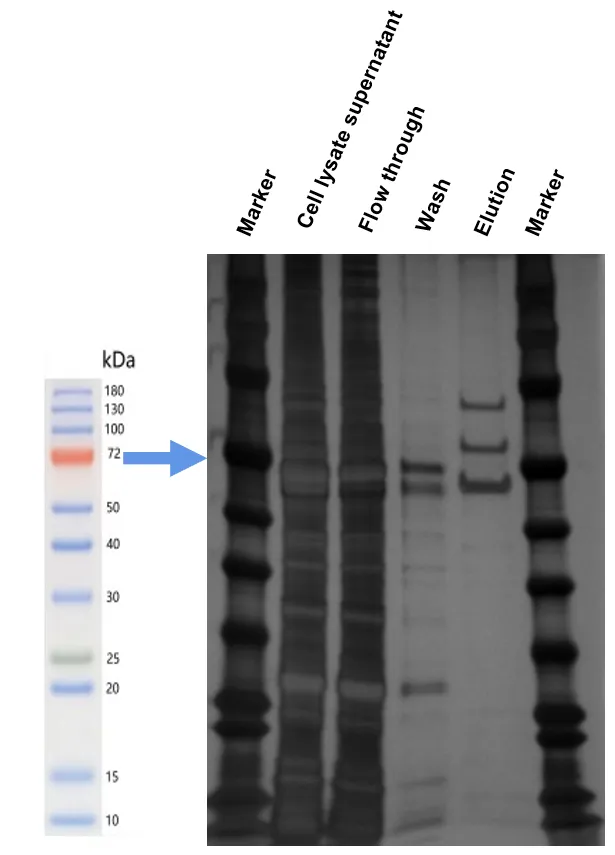

Fig 1. AAV5 Purification by PurProX® AAVEasy. Handling time: 29 minutes.
Recovery rate: 95.43%.

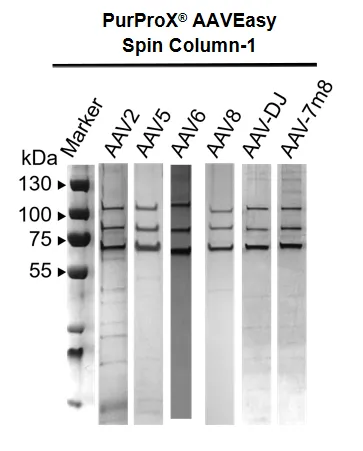

PurProX® AAVEasy rapid-to-purify Spin Column-1 for AAV Serotype 2, 5, 6, 8, DJ, and 7m8 Purification
The PAGE of purified AAVs by PurProX® AAVEasy Spin Column-1 (GMV-PurProX-AAVEasy-U-1).
PurProX® AAVEasy rapid-to-purify Spin Column-2 Designed for AAV9 Purification
The PAGE of purified AAVs by PurProX® AAVEasy Spin Column-2 (GMV-PurProX-AAVEasy-U-2). Company T's Resin (AKTA purification) is used as the control.
Exceptional AAV5 Purification Performance of PurProX® AAVEasy Spin Column-1 Over 5 Consecutive Regeneration Cycles
Results: Silver staining results demonstrate that the AAV5 sample purified during the 5th use still exhibits distinct and intact VP1/VP2/VP3 capsid protein bands with minimal host cell protein impurities.
Conclusion: The PurProx AAVeasy U1 spin column maintains robust purification performance even after 5 consecutive cycles of purification and regeneration.
High Consistency and Stability Analysis of AAV9 Purification Across 5 Regeneration Cycles Using PurProX® AAVEasy Spin Column-2
Results: The high purity of the eluted products and the sharp capsid protein bands indicate that the U2 spin column can stably and efficiently recover high-quality AAV9 vectors across multiple reuses.
Conclusion: The PurProx AAVeasy U2 spin column exhibits exceptional reusability. After 5 consecutive regeneration cycles, the AAV9 purification efficacy of the U2 column shows no noticeable decline.
Accelerated Stability Test (37°C) of PurProx® AAVeasy Spin Columns: Sustained High Recovery and Capsid Purity
Overview: To evaluate the long-term reliability and shelf-life of PurProX® AAVEasy rapid-to-purify Spin Column, an accelerated stability test was conducted. The spin columns (U1 for AAV5 and U2 for AAV9) were incubated at 37°C for a continuous period of 4 weeks. Purification performance was evaluated at Week 1, Week 2, and Week 4.
Results:
- Robust Viral Genome Recovery: Quantitative analysis demonstrates that the binding capacity of the resin remains exceptionally stable under thermal stress. After 1, 2, and 4 weeks at 37°C, the columns maintained a consistently high recovery rate for AAV5 (ranging from ~70% to >80%). There was no significant degradation in column performance over time.
- Preserved Capsid Integrity & High Purity: SDS-PAGE analysis of the purified AAV5 and AAV9 vectors showed highly distinct VP1, VP2, and VP3 bands across all time points. The results indicate that the spin columns consistently yield high-purity rAAV particles without inducing aggregation or degradation, even after the columns were subjected to prolonged 37°C exposure.
Conclusion: GeneMedi's PurProX® AAVEasy rapid-to-purify Spin Column exhibit exceptional thermal stability. The accelerated test at 37°C for 4 weeks confirms that the resin matrix is highly robust, ensuring an extended shelf-life and consistent, reproducible AAV purification. Researchers can rely on these columns for maximum recovery and purity, even under fluctuating shipping or room-temperature storage conditions.
Elimination of Carryover / Cross-Contamination in Alternating Fluorescence Purifications Across 5 Regeneration Cycles Using PurProX® AAVEasy Spin Columns
U1 Spin Column (AAV5 alternating red/green fluorescent purification)
▸ Results: Consecutive purification runs using alternating red and green fluorescent AAV5 vectors showed complete absence of fluorescence carryover from previous runs. Fluorescence detection confirmed that each eluted fraction contained purely the target fluorescently tagged vector of the current run without cross-contamination.
U2 Spin Column (AAV9 alternating red/green fluorescent purification)
▸ Results: Similarly, sequential purification of alternating red and green fluorescent AAV9 vectors across 5 regeneration cycles demonstrated zero detectable cross-contamination or residual AAV from prior purification steps.
▸ Conclusion: The regeneration and cleaning protocol for PurProX® AAVEasy Spin Columns (both U1 and U2) thoroughly eliminates residual AAV capsids between uses, guaranteeing zero carryover and preventing cross-contamination during repeated multi-AAV purifications across 5 consecutive cycles.
Frequently Asked Questions
What is the difference between AAVEasy U1 and U2 models?
U1 (Universal) is suitable for common serotypes such as AAV2, AAV5, AAV6, AAV8, AAV-DJ, and AAV-7m8. U2 (Specialized) is specifically designed for AAV9 and its variants (e.g., AAV-PHP series) to ensure high-affinity binding and efficient recovery.
What operational details should be noted when using AAVEasy?
Perform the entire purification process at room temperature. Do not fully tighten the cap of the purification tube. Do not pour liquid directly out of the purification tube to avoid losing the resin. Use a 10 mL sterile syringe to gently stir the mixture 5–10 times.
What are the product specifications of AAVEasy?
Each kit contains materials for 10 purifications. AAVEasy-U1 yields a maximum of 5.0×10¹³ capsids, while AAVEasy-U2 yields a maximum of 4.28×10¹³ capsids.
Can AAVEasy be used in combination with other products?
Yes. AAVEasy can be used in conjunction with the PurProX® AAVFull Enrichment Kit to achieve a seamless "rapid capture + empty capsid removal" workflow without the need for FPLC/ÄKTA equipment.
Which specific research scenarios is AAVEasy suitable for?
AAVEasy is ideal for small-scale AAV variant screening, capsid engineering research, and high-throughput experiments. It supports processing dozens of samples simultaneously, reducing purification time from hours/days with traditional methods to under 30 minutes, significantly accelerating early-stage R&D.
Is the operation of AAVEasy complicated?
No. The operation of AAVEasy mainly includes steps such as sample preparation, column assembly, equilibration, sample loading & binding, washing, and elution. The entire process is simple and easy to understand, and detailed operating instructions are provided in the kit.
What is the service life or number of reuses for AAVEasy?
Internal validation shows that AAVEasy U1 and U2 spin columns can maintain stable and efficient purification performance even after 5 consecutive cycles of purification and regeneration, with no noticeable decline in purification efficacy.
