AAV vector system (AAV expression system, AAV packaging plasmid system)-Introduction

GeneMedi's AAV Vector System, also named AAV expression system or AAV packaging plasmid system, is powerful tool for in-vivo gene delivery, gene editing and gene therapy. You can easily produce recombinant AAV (rAAV) paticle in 293T cell line in high titer using GeneMedi's AAV Vector System. The Genemedi AAV vector system including multiple AAV expression vector plasmids, AAV helper plasmid and the serotypes-specific AAV Rep-Cap plamids.

GeneMedi's AAV expression vectors have been inserted with differernt expression cassettes, containing kinds of verified protomters and reporters including GFP, zsgreen, RFP, mcherry and luciferase. The GeneMedi's AAV expression vectors have been proved very suitalble for unique gene overexpression or shRNA-mediated knock-down (also called RNAi (RNA interference ). You can also achieve gene knock-out(KO) or gene editing using our Crispr-cas9-gRNA AAV expression vector.

The serotypes-specific AAV Rep-Cap plamid (AAV-RC plasmid, or called AAV-RC plasmid) contain the AAV2-Rep gene with different serotypes of AAV's Cap gene(also called AAV capsids gene).

GeneMedi's AAV Rep-Cap plasmids is including AAV2, AAV5, AAV6, AAV8, AAV9, AAV-PHP.B, AAV-PHP.eB, AAV PHP.s, AAV-Retro (Retrograde), AAV-Anc80 (L65), AAV-DJ, AAV-DJ8. GeneMedi also supplies capsid optimized AAV variant including AAV2 variant(Y444F), AAV2 variant (Y272F, Y444F, Y500F, Y730F), AAV2 variant (Y444F, Y730F, Y500F, Y272F, Y704F, Y252F), AAV2.7m8, AAV8 variant (Y733F), AAV8 variant(Y733F, Y447F), AAV8 variant(Y733F,Y447F,Y275F) and some other engineering AAV serotypes not mentioned.



AAV(Adeno-Associated Virus) vector system


AAV1 vector system

AAV2 vector system

AAV2 variant(Y444F) vector system

AAV2 variant (Y272F,Y444F,Y500F,Y730F) vector system

AAV2 variant(Y444F,Y730F,Y500F,Y272F,Y704F,Y252F) vector system

AAV2 variant(AAV2.7m8) vector system

AAV5 vector system

AAV6 vector system

AAV8 vector system

AAV8 variant (Y733F) vector system



AAV8 variant(Y733F, Y447F) vector system

AAV8 variant(Y733F,Y447F,Y275F) vector system

AAV9 vector system

AAV-Rh10 vector system

AAV-DJ vector system

AAV-Dj8 vector system

AAV2-Retro (Retrograde) vector system

AAV9-PHP.B vector system

AAV9-PHP.A vector system

AAV9-PHP.eB vector system

AAV9-PHP.S vector system



AAV Rep-Cap plasmids (serotypes-specific AAV RC plasmids)


AAV1 Rep-Cap Plasmid

AAV2 Rep-Cap Plasmid

AAV2 variant (Y444F) Rep-Cap plasmid

AAV2 variant (Y272F, Y444F, Y500F, Y730F) Rep-Cap plasmid

AAV2 variant (Y444F, Y730F, Y500F, Y272F, Y704F, Y252F) Rep-Cap plasmid

AAV2 variant(AAV2.7m8) Rep-Cap plasmid

AAV5 Rep-Cap Plasmid

AAV6 Rep-Cap Plasmid

AAV8 Rep-Cap Plasmid

AAV8 variant (Y733F) Rep-Cap plasmid

AAV8 variant (Y733F, Y447F) Rep-Cap plasmid



AAV8 variant (Y733F, Y447F, Y275) Rep-Cap plasmid

AAV9 Rep-Cap Plasmid

AAV-Rh.10 Rep-Cap Plasmid

AAV-DJ Rep-Cap Plasmid

AAV-DJ/8 Rep-Cap Plasmid

AAV-Retro (Retrograde) Rep-Cap plasmid

AAV9-PHP.B Rep-Cap plasmid

AAV9-PHP.A Rep-Cap plasmid

AAV9-PHP.eB Rep-Cap plasmid

AAV9-PHP.S Rep-Cap plasmid



AAV(Adeno Associated Virus) Expression Vector (AAV expression plasmids)


AAV CMV Expression Vector

AAV CAG Expression Vector

AAV Syn Promoter Expression Vector-neuron

AAV CamKII Promoter Expression Vector-neuron



AAV GFAP Promoter Expression Vector-astrocyte

AAV cTNT Promoter Expression Vector-heart

AAV TBG Promoter Expression Vector-liver

AAV hU6 promoter-shRNA vector-RNAi

AAV Expression Vector list


Advantages

1. Safety. The wild type Adeno Associated Virus (AAV) has not currently been known to cause disease, and further security of recombinant AAV is ensured after removal of most AAV genome elements.

2. Low immunogenicity. AAV causes a very mild immune response, lending further support to its apparent lack of pathogenicity.

3. Broad range of host and specificity targeting. AAV has the ability to infect both dividing and quiescent cells, allowing genetic material to be delivered to a highly diverse range of cell types. More than 12 AAV serotypes and a variety of capsid engineered AAV vectors can be selected according to their tissue tropisms.

4. Long-term stable expression. Long term and stable expression of genes in vivo can be mediated by AAV.

5. Stable physical properties. AAV is still alive at 60℃ and resistant to chloroform.

Quality control description

AAV capsid contains VR1 82kDa, VR2 72kDa and VR3 62kDa, which can be detected using the method of polyacrylamide gel electrophoresis (PAGE) followed by silver staining or Coomassie blue staining. Pure AAV should display only three major protein bands, such as shown in Fig 3.

Picture loading failed.

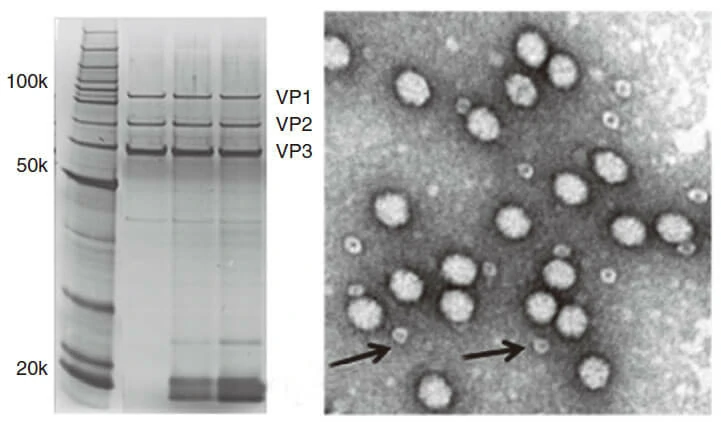

Figure 3: PAGE for quality testing example of AAV by Genemedi. Only 3 protein bands can be seen in the purified AAV virus samples.

Reference

1. Li C, W Sun, C Gu, Z Yang, N Quan, J Yang, Z Shi, L Yu and H Ma. (2018). Targeting ALDH2 for Therapeutic Interventions in Chronic Pain-Related Myocardial Ischemic Susceptibility. Theranostics 8:1027-1041.
2. Yuan Y, Y Zheng, X Zhang, Y Chen, X Wu, J Wu, Z Shen, L Jiang, L Wang, W Yang, J Luo, Z Qin, W Hu and Z Chen. (2017). BNIP3L/NIX-mediated mitophagy protects against ischemic brain injury independent of PARK2. Autophagy 13:1754-1766.
3. Li S, X Dou, H Ning, Q Song, W Wei, X Zhang, C Shen, J Li, C Sun and Z Song. (2017). Sirtuin 3 acts as a negative regulator of autophagy dictating hepatocyte susceptibility to lipotoxicity. Hepatology 66:936-952.
4. Li L, B Li, M Li, C Niu, G Wang, T Li, E Krol, W Jin and JR Speakman. (2017). Brown adipocytes can display a mammary basal myoepithelial cell phenotype in vivo. Mol Metab 6:1198-1211.
5. Feng D, B Wang, L Wang, N Abraham, K Tao, L Huang, W Shi, Y Dong and Y Qu. (2017). Pre-ischemia melatonin treatment alleviated acute neuronal injury after ischemic stroke by inhibiting endoplasmic reticulum stress-dependent autophagy via PERK and IRE1 signalings. J Pineal Res 62.
6. Du X, H Hao, Y Yang, S Huang, C Wang, S Gigout, R Ramli, X Li, E Jaworska, I Edwards, J Deuchars, Y Yanagawa, J Qi, B Guan, DB Jaffe, H Zhang and N Gamper. (2017). Local GABAergic signaling within sensory ganglia controls peripheral nociceptive transmission. J Clin Invest 127:1741-1756.
7. Yang H, J Yang, W Xi, S Hao, B Luo, X He, L Zhu, H Lou, YQ Yu, F Xu, S Duan and H Wang. (2016). Laterodorsal tegmentum interneuron subtypes oppositely regulate olfactory cue-induced innate fear. Nat Neurosci 19:283-9.
8. Wu X, X Wu, Y Ma, F Shao, Y Tan, T Tan, L Gu, Y Zhou, B Sun, Y Sun, X Wu and Q Xu. (2016). CUG-binding protein 1 regulates HSC activation and liver fibrogenesis. Nat Commun 7:13498.
9. Wei Y, Y Chen, Y Qiu, H Zhao, G Liu, Y Zhang, Q Meng, G Wu, Y Chen, X Cai, H Wang, H Ying, B Zhou, M Liu, D Li and Q Ding. (2016). Prevention of Muscle Wasting by CRISPR/Cas9-mediated Disruption of Myostatin In vivo. Mol Ther 24:1889-1891.
10. Zhang X, Y Yuan, L Jiang, J Zhang, J Gao, Z Shen, Y Zheng, T Deng, H Yan, W Li, WW Hou, J Lu, Y Shen, H Dai, WW Hu, Z Zhang and Z Chen. (2014). Endoplasmic reticulum stress induced by tunicamycin and thapsigargin protects against transient ischemic brain injury: Involvement of PARK2-dependent mitophagy. Autophagy 10:1801-13.
