SOLIDEX®-ISOEx AutoMag AM1 Automated Cell Separator (Cat No.:GMP-ISOEx-Mag-AM1)

The SOLIDEX®-ISOEx AutoMag AM1 Automated Cell Separator is a fully automated, high-throughput magnetic cell sorting system. Built as a modular benchtop instrument, it integrates sample handling, automated magnetic separation, and fraction collection into a single platform—dramatically reducing manual operation and experimental error, and delivering an efficient, reliable cell-separation solution for immunology, oncology, and cell-therapy research.
The SOLIDEX®-ISOEx AutoMag AM1 is a fully automated, high-throughput magnetic cell sorting instrument. After target or non-target cells are labeled with specific antibodies and magnetic beads, sample tubes are loaded into the instrument. The robotic arm automatically aspirates and dispenses the sample through the magnetic separation column positioned in a high-gradient magnetic field; magnetically labeled cells are retained in the column while unlabeled cells pass through. Washing and elution are performed automatically to recover a high-purity target fraction—directly bridging downstream experiments.
Check GeneMedi's SOLIDEX™-ISOEx Cell Isolation Kit & Nanobeads


pdfCOA

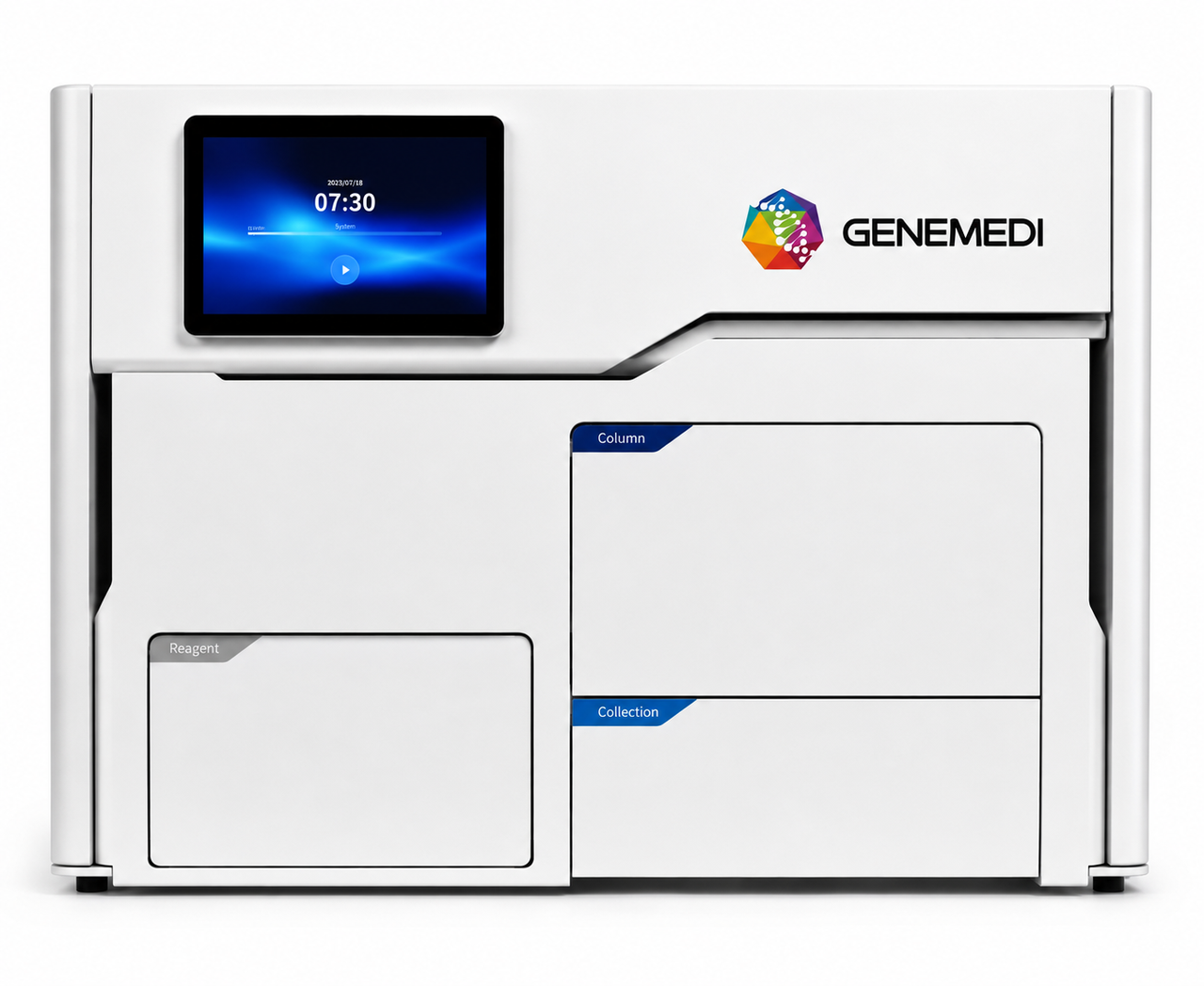

SOLIDEX®-ISOEx AutoMag AM1 Automated Cell Separator

Order information


Catalog No. Product Name Size Price(In USD)
GMP-ISOEx-Mag-AM1 SOLIDEX®-ISOEx AutoMag AM1 Automated Cell Separator 1 set

Description


Cat No. GMP-ISOEx-Mag-AM1
Product Name SOLIDEX®-ISOEx AutoMag AM1 Automated Cell Separator
Description The SOLIDEX®-ISOEx AutoMag AM1 is a fully automated, high-throughput magnetic cell sorting instrument. After target or non-target cells are labeled with specific antibodies and magnetic beads, sample tubes are loaded into the instrument. The robotic arm automatically aspirates and dispenses the sample through the magnetic separation column positioned in a high-gradient magnetic field; magnetically labeled cells are retained in the column while unlabeled cells pass through. Washing and elution are performed automatically to recover a high-purity target fraction—directly bridging downstream experiments.
Application Suitable for automated positive selection, negative selection, and depletion of immune cells (T cells, B cells, NK cells, monocytes, etc.) from PBMCs, whole blood, or tissue single-cell suspensions. Ideal for high-throughput preparation of T cells, NK cells, and other immune populations for cell-therapy research, HLA analysis, chimerism studies, and functional assays.
Format Column-based
Key feature
  • Parallel Processing: Up to 6 samples sorted in a single run—leading throughput in its class.
  • High Precision: Robotic pipetting accuracy CV ≤ 5% ensures exceptional run-to-run reproducibility.
  • Seamless Compatibility: 100% compatible with mainstream separation protocols and commercial reagents—smoothly integrates into existing workflows.
  • Lower Cost, Higher Efficiency: Up to ~70% less manual handling; single-sample sorting in as fast as ~6 minutes.
Storage Store and operate in a clean, dry, well-ventilated laboratory environment at 10–30 °C and relative humidity ≤ 70%. Avoid dust, corrosive gases, and strong electromagnetic interference. Keep magnetically sensitive devices away from the column area. Confirm final requirements with the supplier manual.

Technical Specifications

Sample rack capacity15 mL EP tubes × 6
Collection rack capacity15 mL EP tubes × 24 (6 per row)
Reagent area capacity50 mL EP tubes × 8 / 7 mL reagent bottles × 8
Magnetic separation column typeSOLIDEX®-ISOEx M Column / L Column (compatible with Miltenyi MS / LS / LD and other mainstream columns)
Maximum cell loading2 × 10^9
Maximum labeled cell number1 × 10^8
Robotic pipetting range3–1000 μL
Robotic pipetting accuracyCV ≤ 5%
Sorting time per sample~6 minutes
Parallel processingUp to 6 samples
Dimensions (W × H × D)532 × 812 × 560 mm (approx., subject to supplier manual)
Weight84 kg (net)
Power supplyAC 200–240 V, 50 Hz (rated 220 V)
Power consumption450 W
Operating temperatureRT
Relative humidity≤ 70%
Atmospheric pressure86–106 kPa
Data interfaceUSB; Wi-Fi supported
Certification3C (China)

FAQ

Q1: Can the AutoMag AM1 be used for positive selection, negative selection, or depletion?
Yes. When used with SOLIDEX®-ISOEx or other mainstream magnetic beads, the system fully supports positive selection, negative selection, and depletion.
Q2: How does separation work?
After target or non-target cells are labeled with antibody-bound magnetic beads, sample tubes are loaded into the instrument. The robotic arm automatically passes the sample through the magnetic separation column located in a high-gradient magnetic field. Magnetically labeled cells are retained in the column while unlabeled cells flow through. Washing and elution are performed automatically to recover the target fraction.
Q3: Which columns should I use?
The AutoMag AM1 uses SOLIDEX®-ISOEx M Column and L Column (GMP-ISOEx-Column-M / GMP-ISOEx-Column-L). It is also compatible with mainstream columns such as Miltenyi MS (130-042-201), LS (130-042-401), and LD (130-042-901).
Q4: How many samples can be processed at once?
Up to 6 samples can be processed in parallel per run, with a sorting time of approximately 6 minutes per sample.
Q5: What is the maximum cell loading?
Maximum sample loading is 2 × 10^9 total cells, with up to 1 × 10^8 magnetically labeled target cells per run.
Q6: Are the magnetic beads FACS-compatible?
After positive selection, magnetic particles should be removed from the cell surface using the appropriate release protocol before FACS analysis, to avoid interference with light-scatter signals. For untouched target cells, negative selection is recommended.
Q7: Can I customize the protocol?
Yes. The touch-screen interface provides preset protocols and supports user-defined protocols (labeling, washing, and elution steps).
